I invited Justin T Philips to explain his technique for creating cartoon outlines on Sketchfab.
This tutorial is a simple explanation for how to achieve the outline effect seen in my series of Skyrace models.
I personally first saw it used by XkungWork, but I have also seen it used in the very popular Barbarian model and many of Tsan38’s models.
The short explanation is this:
EXTRUDE > SEPARATE > FLIP NORMALS > MOVE UVs TO A SOLID COLOR
The long version is as follows:
I work in Maya, but the principle technique should translate to any program.
Before we start, be sure to enable BACKFACE CULLING:
Enable Backface Culling

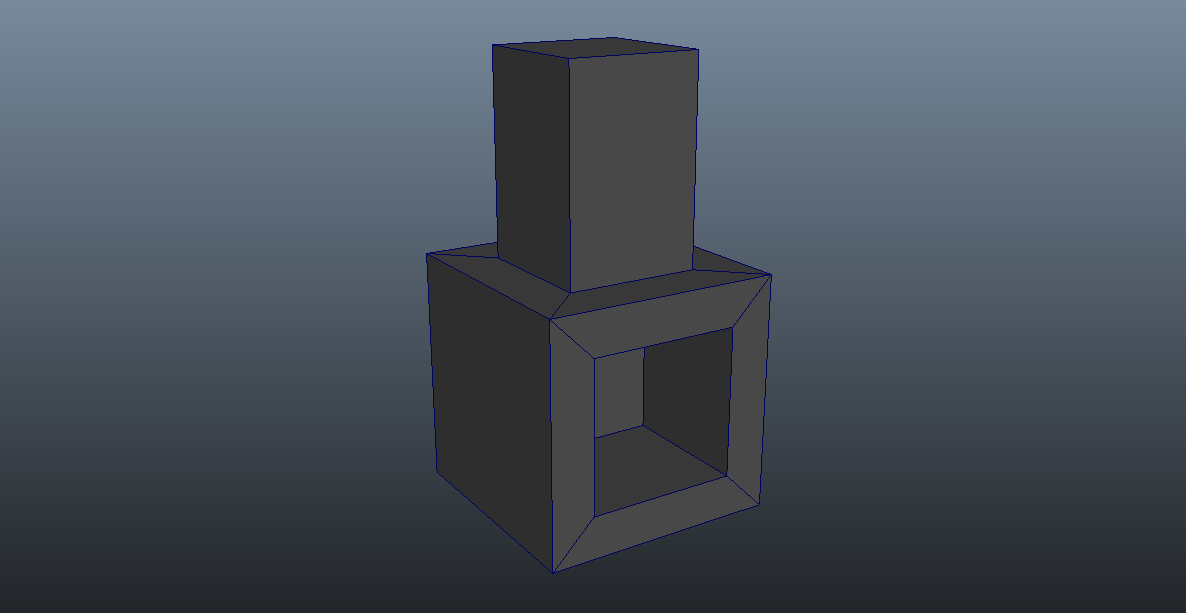

Here is the model I will be demonstrating on:
Demo model

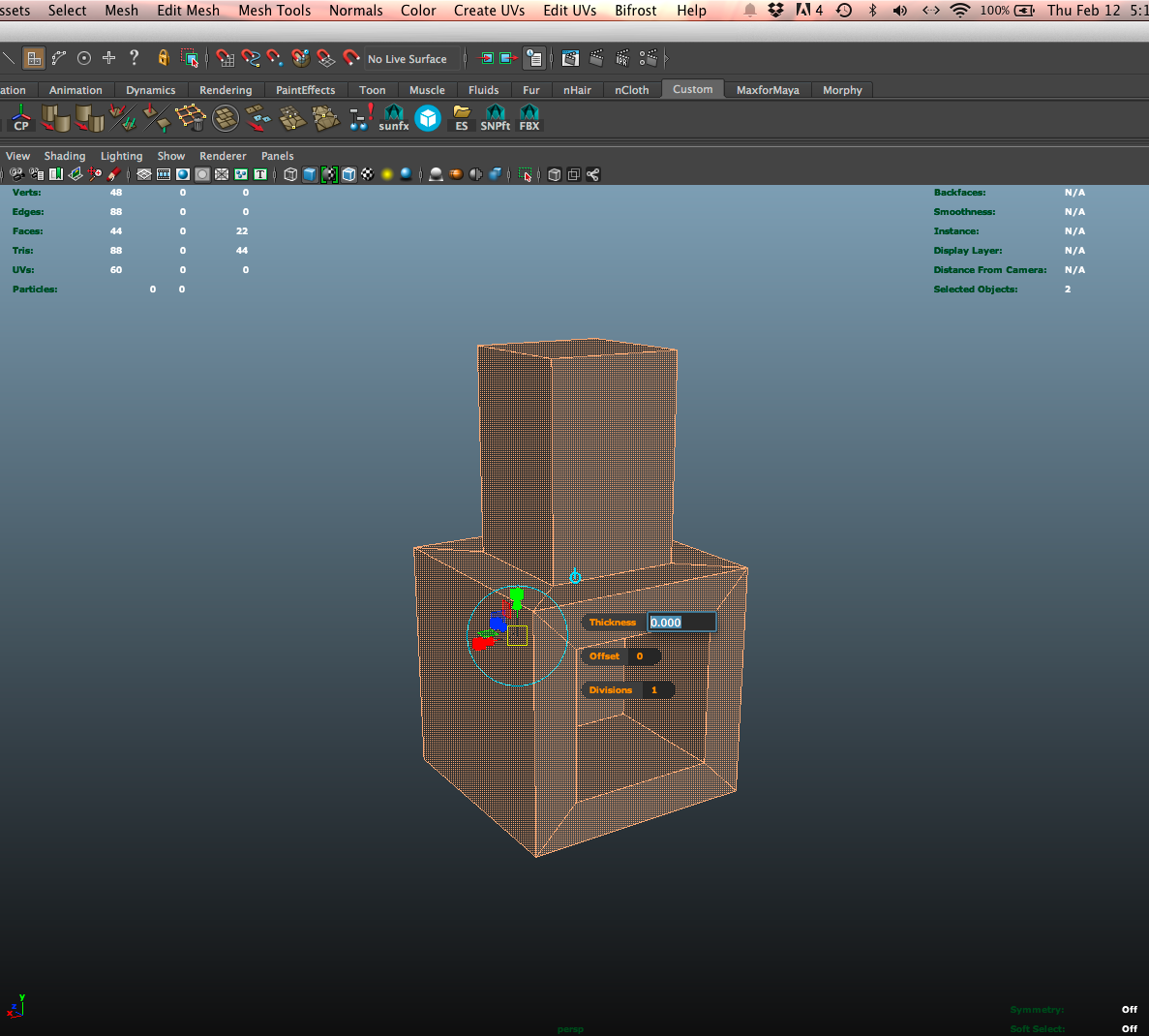

Step 1: Extrude
We’ll extrude the model to slightly enlarge it:
Now we have 2 sets of surfaces, but the model is still one “object” so we need to separate the shells. But first, lets flip the face normals so that we can see the original and the outline meshes.
Step 2: Flip Normals
Now you can already see the effect.
NOTE:Extruding some meshes may result in vertices flying off and making the model look like it’s exploding. When this happens you will need to clean them up manually. I like to grab each renegade vert individually and use Mesh > Average Verts
Step 3: Separate Objects
After flipping, I like to split the base and outline into separate objects. This makes it easier to texture them later.
Below you can see the two objects next to each other for clarity sake.
NOTE 2: If your base mesh has a hole in it, the extrude will have left a ring of faces between the original and the outline. You need to delete these faces before separation, or you will have to separate by more complicated means
Step 4: Texturing
This tutorial isn’t about how to paint your models, more about how to UV your outline mesh. You want to make the outline after you layout your primary UV’s.
I set aside a small area of my texture map for the outline color. Here I have the UV’s for the base taking up most of the sheet, and you can see the outline UV’s shrunk down in the top corner. Since it’s a solid color, you could really go very small with this square.
Step 5: Sketchfab Setup
I use Sketchfab’s export script to upload models. It sends everything in your scene, so be aware of that.
Once it is online, go to your 3D settings and set these parameters to achieve a cell shaded look:
I also apply a fully hard vignette to my models, but that is really just something I’m doing to unify the Skyrace Series. I also set the FoV (Feild of View) down to 30º. This flattens the model, making it look more 2D. You can think of FoV as a “Perspective-ness Slider”.
In order to get the meshes to display properly, you must set the FACE RENDERING to SINGLE SIDED:
That’s it. Hope you learned something.
Thanks Justin!
Check out Justin’s Portfolio on Sketchfab and especially his Skyrace series. You can also follow him on his website, digitalthornhill.com.
okay thats a fun hack, but never mind, I am not doing all that work just to get a toon outline on this viewer. I hope they add proper cel shading support!
The images in this blog are broken
Sorry about that! I’ve restored the images – better now?
I see the images now, thank you.
This is cool! Thanks for sharing
Anyway to do this in 3ds max?
Following the instructions I’ve made a sample model located here
https://sketchfab.com/models/40f7cb8f9209458884780dbdf870956e
Hi Paul, have you found a solution?
In 3DS Max:
Clone the mesh (duplicate)
Use the “push” modifier to offset thickness.
Use the “normal” modifier to flip normals.
Right-click: mesh / properties / check: “Backface cull”
I turned on single sided in mesh editor but outline doesn’t works. My cartoon outline works only if i turn on single sided in model inspector. How can I make outline without turning on single sided in model inspector?
On your model you will want to select the ‘lambert4’ material in the materials tab of the 3D editor, and then set that material to Faces Rendering > Single-sided.
Can we add this affect in transparent asset ? As of now i tried it but outlined part hides the transparency of base model….
